1.58mm OD Single Mode Ferrule – MT2055

Renderings

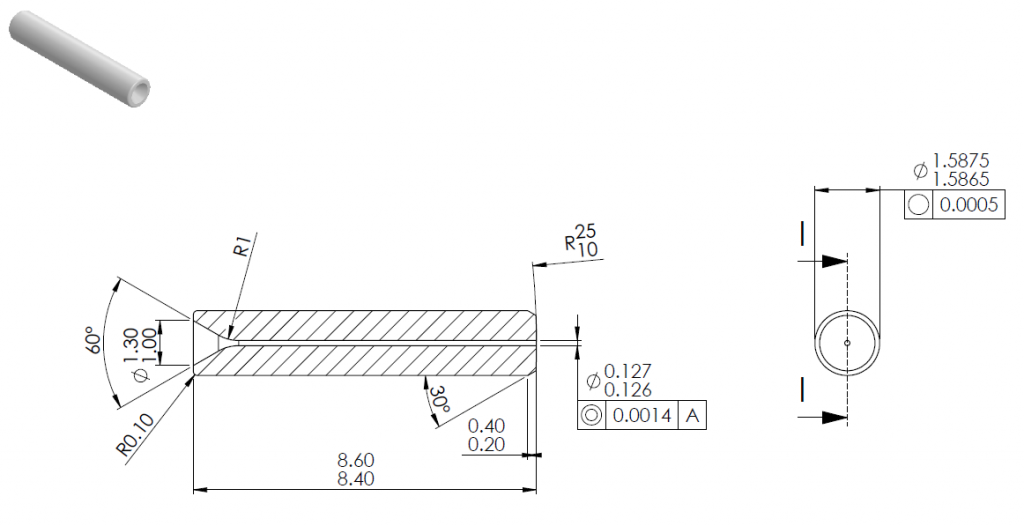

View LargerDownload Technical Drawing

Specifications

Model MT2055
Inside Diameter 0.126 - 0.127
Outside Diameter 1.58
Length 8.40 - 8.60
Type Zirconia
Custom options are available.

Description

  • Available in single-mode or multi-mode ID sizes with 1.5865/1.5875mm OD x various lengths
  • Single-mode standard sizes include: .1255mm ID and .1260mm ID (1um tolerances)
  • Custom ID, OD and Lengths available upon customer request
  • Available in zirconia or alumina ceramic material
