APC Single Mode Ferrule – MT2020

Renderings

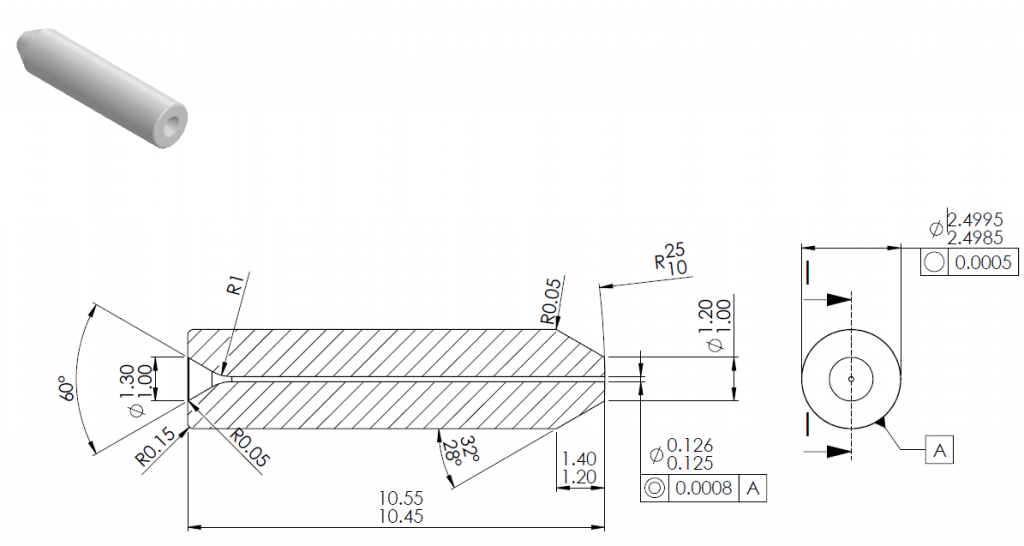

View LargerDownload Technical Drawing

Specifications

Model MT2020
Inside Diameter 0.125 - 0.126
Outside Diameter 2.5
Length 10.45 - 10.55
Type Zirconia
Custom options are available.

Description

  • Available in single-mode ID sizes with 2.4985/2.4995mm OD x 10.45/10.55mm Length
  • Single-mode standard sizes include: .1250mm ID, .1255mm ID, .126mm ID (1um tolerances)
  • Available as ferrule only or with industry standard stainless steel flanges
  • Custom ID, OD and Lengths available upon customer request
  • Available in zirconia or alumina ceramic material
