SC Multi Mode Ferrule with Flange – MT2045

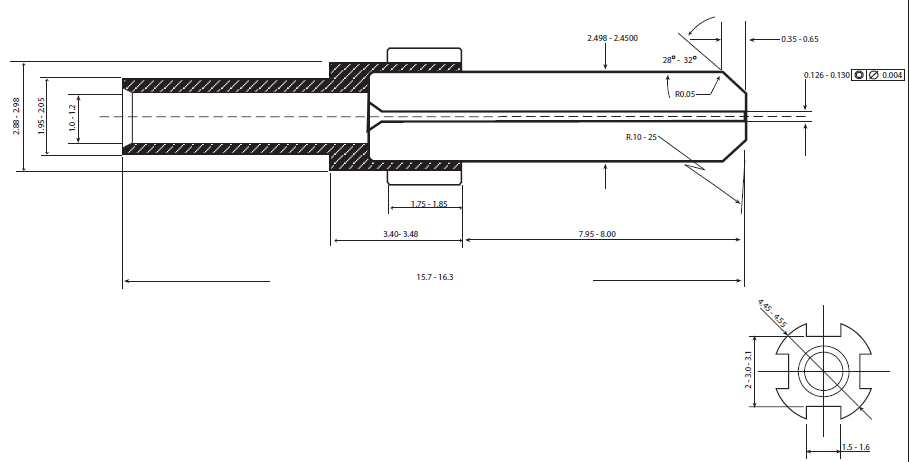

Renderings
Specifications
Model | MT2045 w/flange |
Inside Diameter | .126 - .130 |
Outside Diameter | 2.5 |
Length | 10.45 - 10.55 |
Type | Zirconia |
Custom options are available. |
Description
- Available in single-mode or multi-mode ID sizes with 2.4985/2.4995mm OD x 10.45/10.55mm Length
- Single-mode standard sizes include: .1260mm ID (1um tolerances)
- Multi-mode standard sizes include: .1260mm ID and .1270mm ID (4um tolerances)
- Available as ferrule only or with industry standard stainless steel flanges
- Custom ID, OD and Lengths available upon customer request
- Available in zirconia or alumina ceramic material
