SC Single Mode Ferrule with Flange – MT2044

Renderings

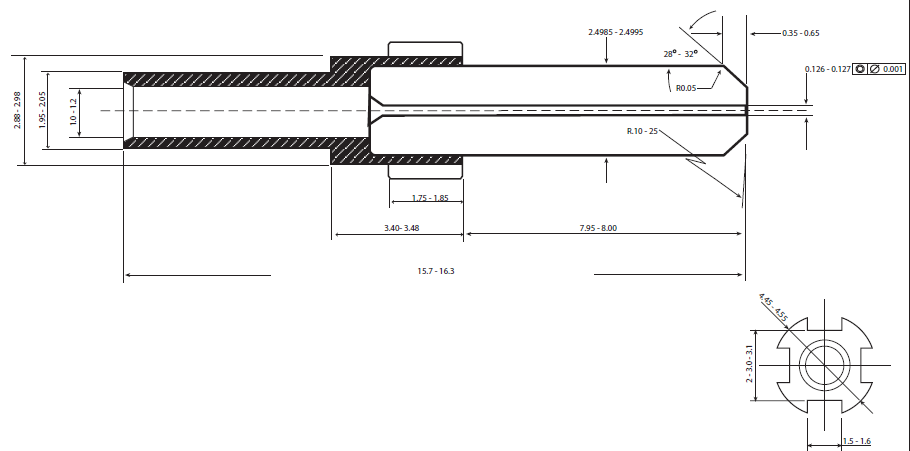

View LargerDownload Technical Drawing

Specifications

Model MT2044 w/flange
Inside Diameter 0.126 - 0.127
Outside Diameter 2.5
Length 10.45 - 10.55
Type Zirconia
Custom options are available.

Description

  • Available in single-mode or multi-mode ID sizes with 2.4985/2.4995mm OD x 10.45/10.55mm Length
  • Single-mode standard sizes include: .1260mm ID (1um tolerances)
  • Multi-mode standard sizes include: .1260mm ID and .1270mm ID (4um tolerances)
  • Available as ferrule only or with industry standard stainless steel flanges
  • Custom ID, OD and Lengths available upon customer request
  • Available in zirconia or alumina ceramic material
