ST Single Mode Ferrule – MT2016

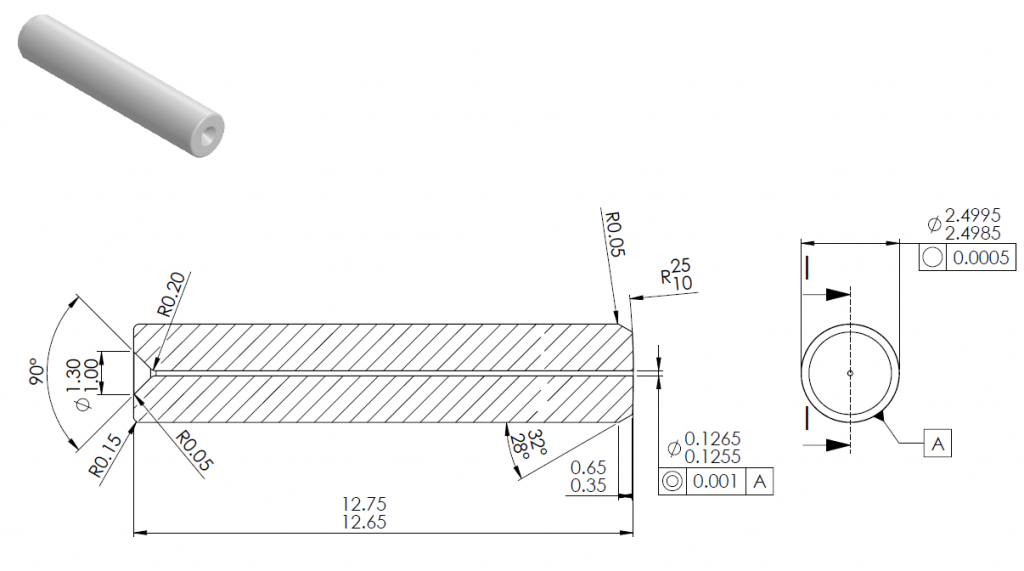

Renderings
Specifications
Model | MT2016 |
Inside Diameter | 0.1255 - 0.1265 |
Outside Diameter | 2.5 |
Length | 12.65 - 12.75 |
Type | Zirconia |
Custom options are available. |
Description
- Available in single-mode or multi-mode ID sizes with 2.4985/2.4995mm OD x 12.65/12.75mm Length
- Single-mode standard sizes include: .1250mm ID, .1255mm ID, .126mm ID (1um tolerances)
- Multi-mode standard sizes include: .1260mm ID and .1270mm ID (4um tolerances)
- Available as ferrule only or with industry standard stainless steel flanges
- Custom ID, OD and Lengths available upon customer request
- Available in zirconia or alumina ceramic material
