SMA Multi Mode Ferrule – MT2062

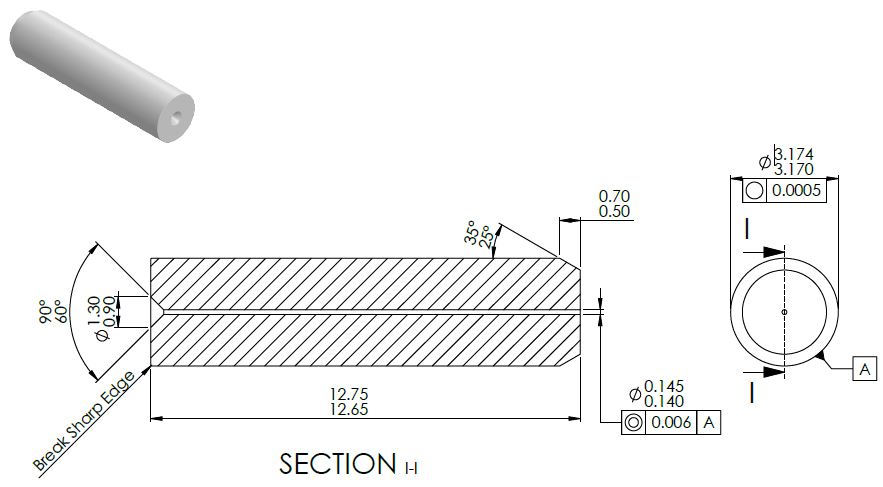

Renderings
Specifications
Model | MT2062 |
Inside Diameter | 0.140 - 0.145 |
Outside Diameter | 3.17 |
Length | 12.65 - 12.75 |
Type | Zirconia |
Custom options are available. |
Description
- Available in single-mode or multi-mode ID sizes with 3.172/3.174mm OD x 12.65/12.75mm Length
- Single-mode standard sizes include: .1255mm ID and .1260mm ID (1um tolerances)
- Multi-mode standard sizes include: .1260mm ID and .1400mm ID (4um tolerances)
- Custom ID, OD and Lengths available upon customer request
- Available in zirconia or alumina ceramic material
