SMA Single Mode Ferrule – MT2060

Renderings

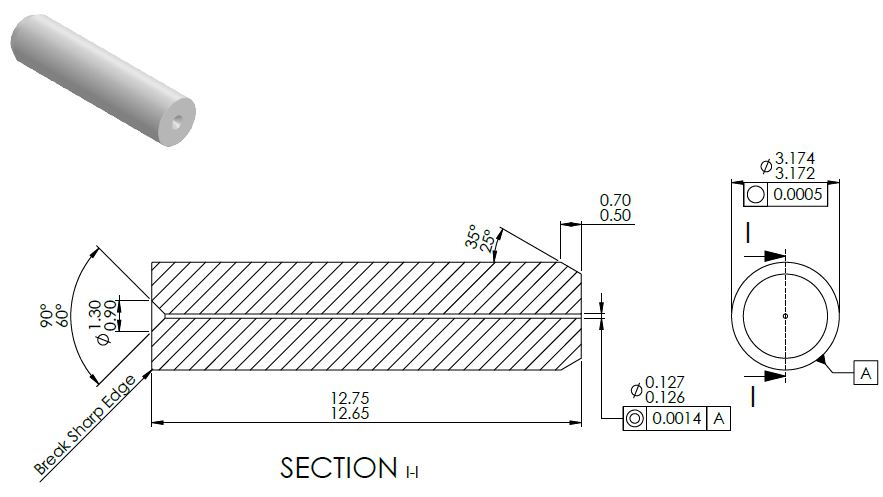

View LargerDownload Technical Drawing

Specifications

Model MT2060
Inside Diameter 0.126 - 0.127
Outside Diameter 3.17
Length 12.65 - 12.75
Type Zirconia
Custom options are available.

Description

  • Available in single-mode or multi-mode ID sizes with 3.172/3.174mm OD x 12.65/12.75mm Length
  • Single-mode standard sizes include: .1255mm ID and .1260mm ID (1um tolerances)
  • Multi-mode standard sizes include: .1260mm ID and .1400mm ID (4um tolerances)
  • Custom ID, OD and Lengths available upon customer request
  • Available in zirconia or alumina ceramic material
