Ruby Bar Hole Single Cup – MT5505

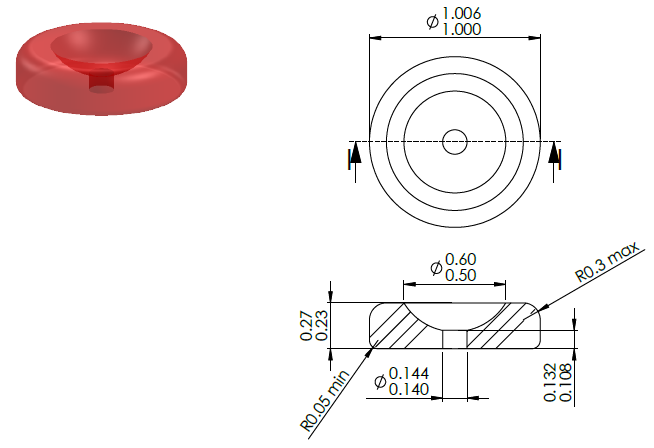

Renderings
Specifications
Model | MT5505 |
Inside Diameter | 0.140 - 0.144 |
Outside Diameter | 1.00 - 1.006 |
Length | 0.23 - 0.27 |
Type | Ruby |
Custom options are available. |
Description
A bar hole single cup jewel is flat on one side, a hole through the center and a cup surrounding the hole opposite from the flat side.
