Ruby Bar Hole Single Cup – MT5507

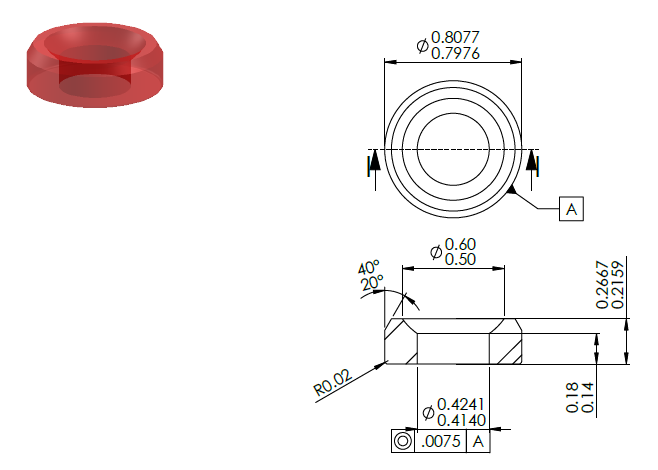

Renderings
Specifications
Model | MT5507 |
Inside Diameter | 0.4140 - 0.4241 |
Outside Diameter | 0.7976 - 0.8077 |
Length | 0.2159 - 0.2667 |
Type | Ruby |
Custom options are available. |
Description
A bar hole single cup jewel is flat on one side, a hole through the center and a cup surrounding the hole opposite from the flat side.
