Ruby Bar Hole Single Cup – MT5508

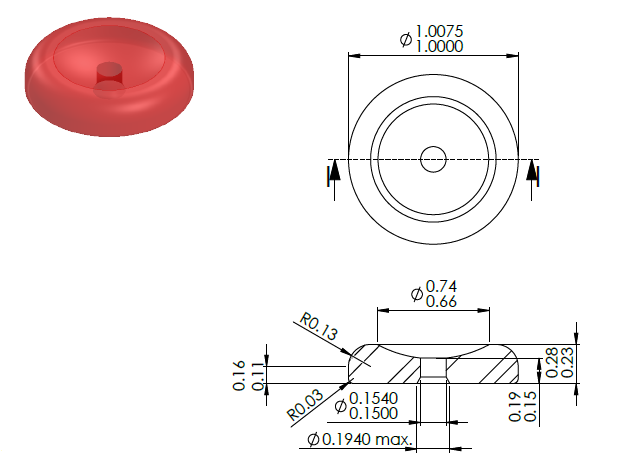

Renderings
Specifications
Model | MT5508 |
Inside Diameter | 0.150 - 0.154 |
Outside Diameter | 1.00 - 1.0075 |
Length | 0.23 - 0.28 |
Type | Ruby |
Custom options are available. |
Description
A bar hole single cup jewel is flat on one side, a hole through the center and a cup surrounding the hole opposite from the flat side.
