Ruby Bar Hole Single Cup – MT5513
Specifications
| Model | MT5513 |
| Inside Diameter | 0.2200 - 0.2260 |
| Outside Diameter | 1.4000 - 1.4075 |
| Length | 0.31 - 0.36 |
| Type | Ruby |
| Custom options are available. | |
Description

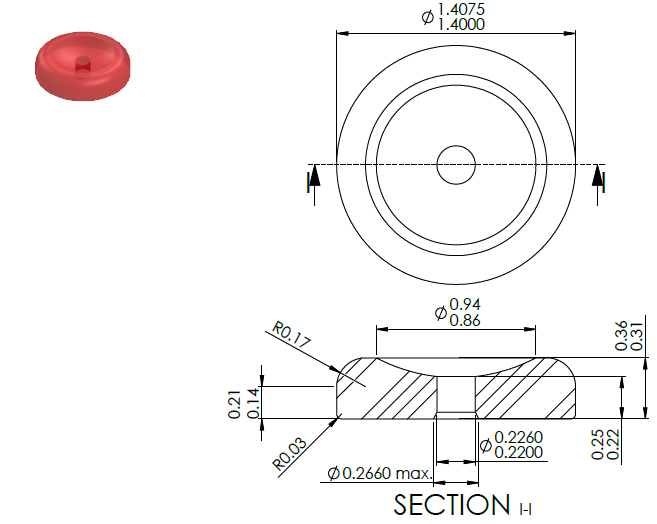

A bar hole single cup jewel is flat on one side, a hole through the center and a cup surrounding the hole opposite from the flat side.
