Ruby Bar Hole Single Cup – MT5516

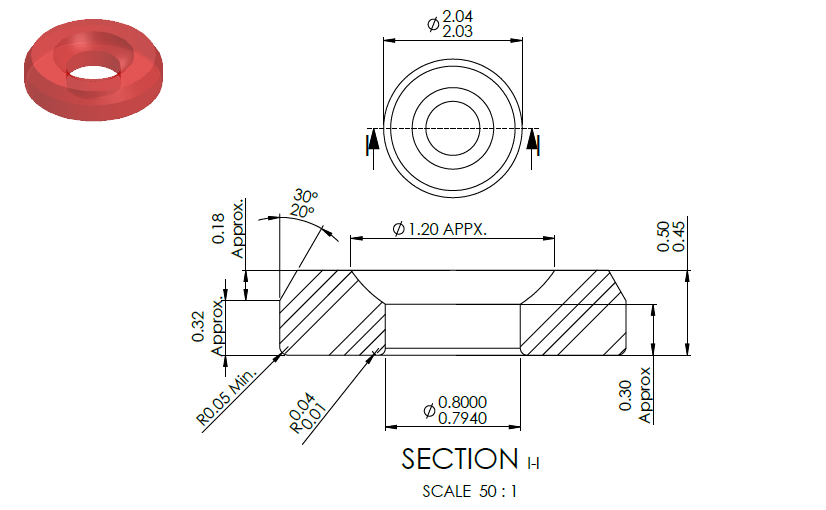

Renderings
Specifications
Model | MT5516 |
Inside Diameter | 0.794 - 0.800 |
Outside Diameter | 2.03 - 2.04 |
Length | 0.45 - 0.50 |
Type | Ruby |
Custom options are available. |
Description
A bar hole single cup jewel is flat on one side, a hole through the center and a cup surrounding the hole opposite from the flat side.
