Ruby Bar Hole Single Cup – MT5530

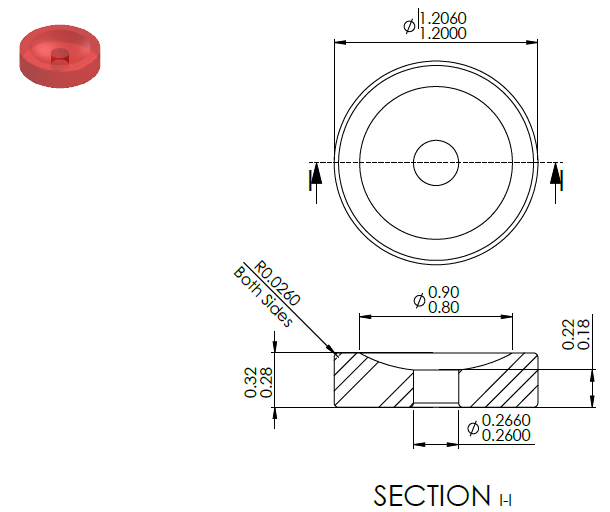

Renderings
Specifications
Model | MT5530 |
Inside Diameter | 0.2600 - 0.2660 |
Outside Diameter | 1.2000 - 1.2060 |
Length | 0.28 - 0.32 |
Type | Ruby |
Custom options are available. |
Description
A bar hole single cup jewel is flat on one side, a hole through the center and a cup surrounding the hole opposite from the flat side.
