Sapphire Bar Hole Single Cup – MT5503

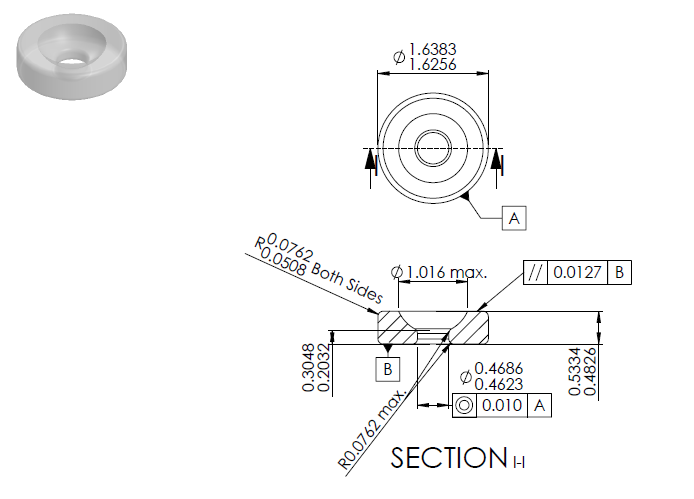

Renderings
Specifications
Model | MT5503 |
Inside Diameter | 0.4623 - 0.4686 |
Outside Diameter | 1.6256 - 1.6383 |
Length | 0.4826 - 0.5334 |
Type | Sapphire |
Custom options are available. |
Description
A bar hole single cup jewel is flat on one side, a hole through the center and a cup surrounding the hole opposite from the flat side.
