Sapphire Bar Hole Single Cup – MT5504

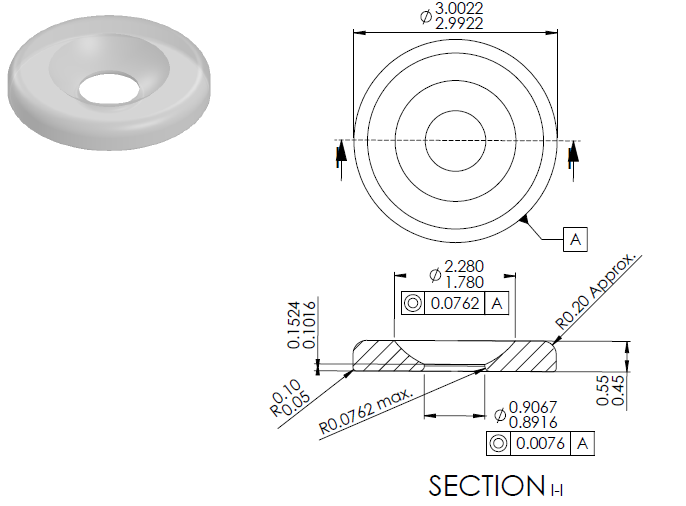

Renderings
Specifications
Model | MT5504 |
Inside Diameter | 0.8916 - 0.9067 |
Outside Diameter | 2.9922 - 3.0022 |
Length | 0.45 - 0.55 |
Type | Sapphire |
Custom options are available. |
Description
A bar hole single cup jewel is flat on one side, a hole through the center and a cup surrounding the hole opposite from the flat side.
