Sapphire Bar Hole Single Cup – MT5509

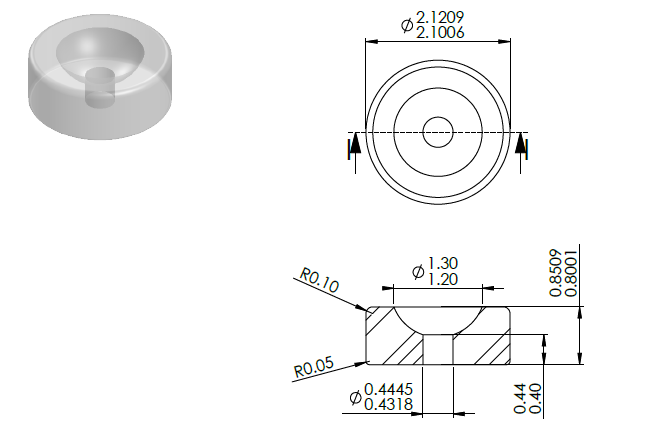

Renderings
Specifications
Model | MT5509 |
Inside Diameter | 0.43 - 0.44 |
Outside Diameter | 2.10 - 2.12 |
Length | 0.80 - 0.85 |
Type | Sapphire |
Custom options are available. |
Description
A bar hole single cup jewel is flat on one side, a hole through the center and a cup surrounding the hole opposite from the flat side.
