Sapphire Bar Hole Single Cup – MT5511

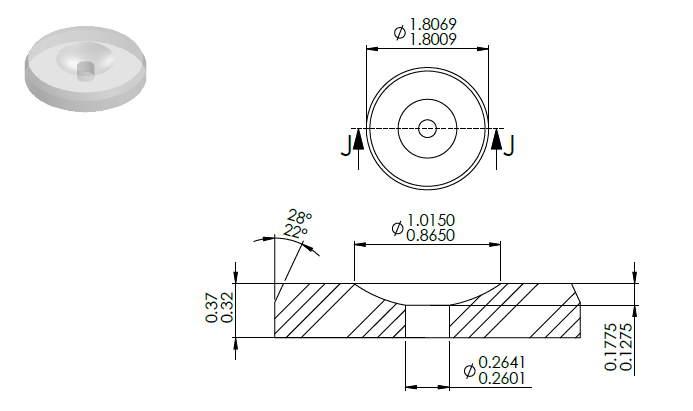

Renderings
Specifications
Model | MT5511 |
Inside Diameter | 0.2601 - 0.2641 |
Outside Diameter | 1.8009 - 1.8069 |
Length | 0.32 - 0.37 |
Type | Sapphire |
Custom options are available. |
Description
A bar hole single cup jewel is flat on one side, a hole through the center and a cup surrounding the hole opposite from the flat side.
