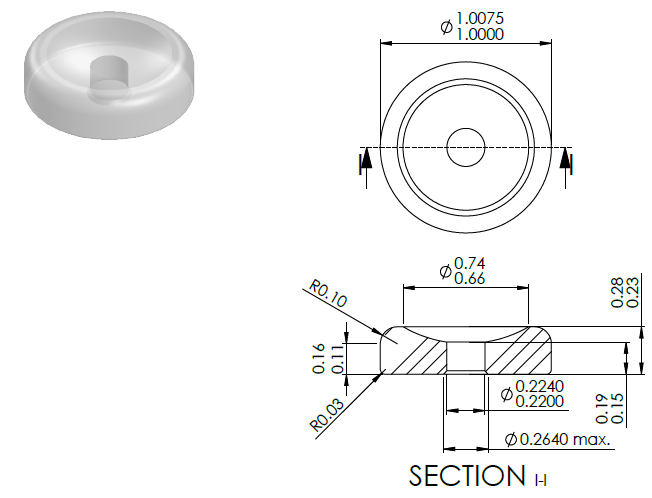

Sapphire Bar Hole Single Cup – MT5515
Specifications
| Model | MT5515 |
| Inside Diameter | 0.2200 - 0.2240 |
| Outside Diameter | 1.00 - 1.0075 |
| Length | 0.23 - 0.28 |
| Type | Sapphire |
| Custom options are available. | |
Description
A bar hole single cup jewel is flat on one side, a hole through the center and a cup surrounding the hole opposite from the flat side.
