Sapphire Bar Hole Single Cup – MT5525

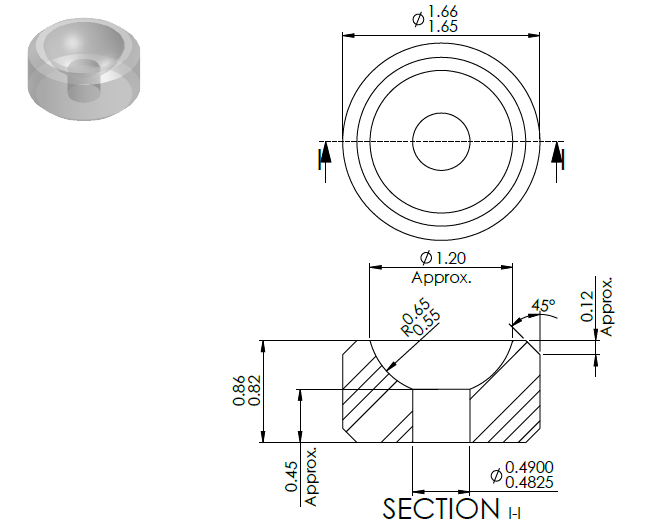

Renderings
Specifications
Model | MT5525 |
Inside Diameter | 0.48 - 0.49 |
Outside Diameter | 1.65 - 1.66 |
Length | 0.82 - 0.86 |
Type | Sapphire |
Custom options are available. |
Description
A bar hole single cup jewel is flat on one side, a hole through the center and a cup surrounding the hole opposite from the flat side.
