Sapphire or Ruby Bar Hole Single Cup – MT5517

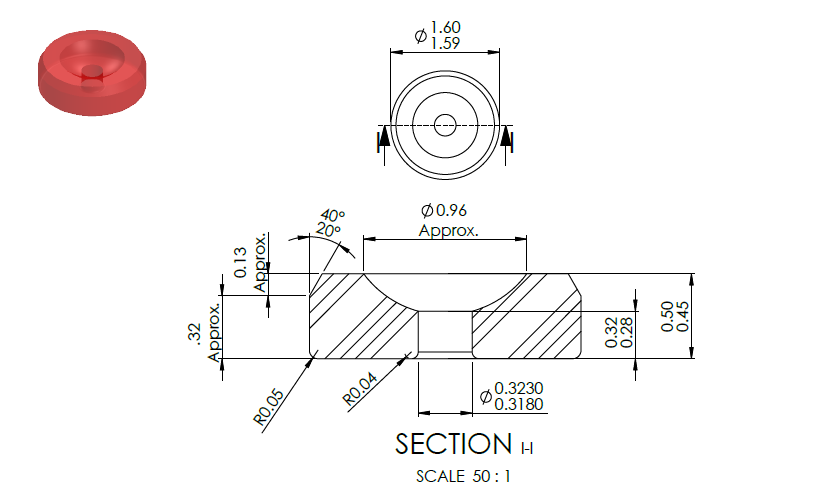

Renderings
Specifications
Model | MT5517 |
Inside Diameter | 0.31 - 0.32 |
Outside Diameter | 1.59 - 1.60 |
Length | 0.45 - 0.50 |
Type | Sapphire or Ruby |
Custom options are available. |
Description
A bar hole single cup jewel is flat on one side, a hole through the center and a cup surrounding the hole opposite from the flat side.
