Sapphire or Ruby Bar Hole Single Cup – MT5519

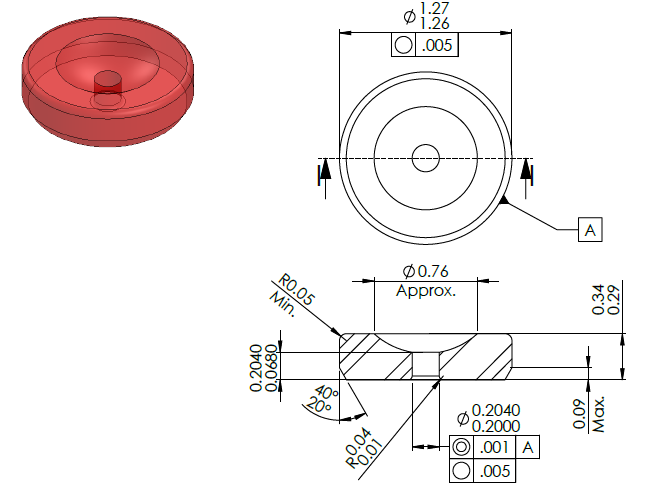

Renderings
Specifications
Model | MT5519 |
Inside Diameter | 0.2000 - 0.2040 |
Outside Diameter | 1.26 - 1.27 |
Length | 0.29 - 0.34 |
Type | Sapphire or Ruby |
Custom options are available. |
Description
A bar hole single cup jewel is flat on one side, a hole through the center and a cup surrounding the hole opposite from the flat side.
