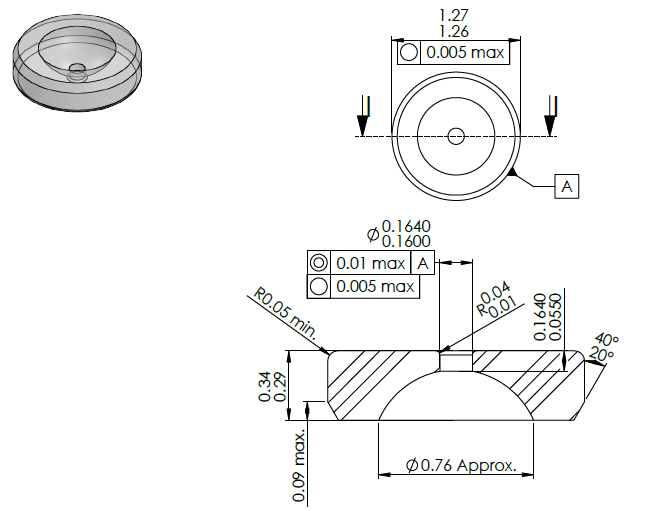

Sapphire or Ruby Bar Hole Single Cup – MT5520
Specifications
| Model | MT5520 |
| Inside Diameter | 0.160 - 0.164 |
| Outside Diameter | 1.26 - 1.27 |
| Length | 0.29 - 0.34 |
| Type | Sapphire or Ruby |
| Custom options are available. | |
Description
A bar hole single cup jewel is flat on one side, a hole through the center and a cup surrounding the hole opposite from the flat side.
