Sapphire Vee Jewel – MT4050

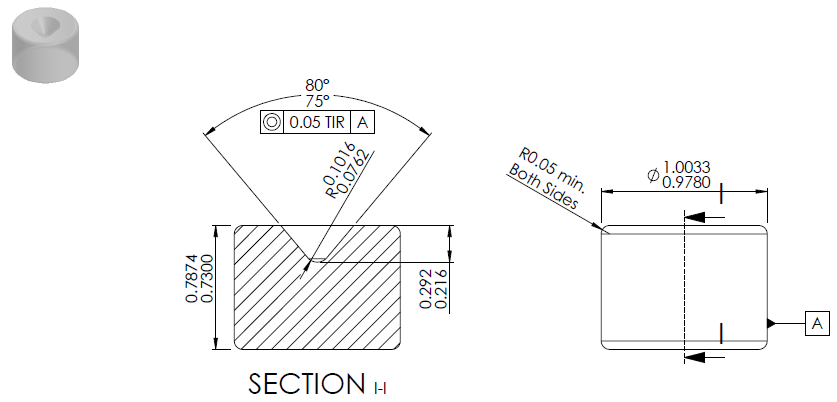

Renderings
Specifications
Model | MT4050 |
Outside Diameter | 0.9780 - 1.00 |
Length | 0.7300 - 0.7874 |
Type | Sapphire |
Custom options are available. |
Description
A vee jewel is flat on one side with a vee opposite from the flat side. The vee provides minimum friction when paired with conical, small radiused pivots that permit slight lateral movement.
