1.58mm ID Sleeve – MT2504

Renderings

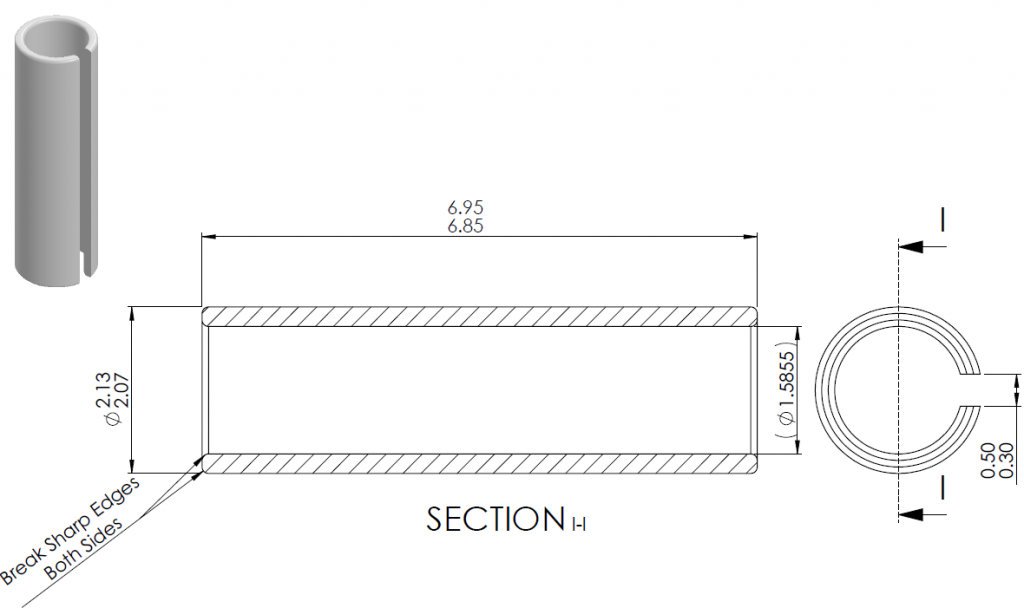

View LargerDownload Technical Drawing

Specifications

Model MT2504
Inside Diameter 1.5855
Outside Diameter 2.07 - 2.13
Length 6.95 - 6.85
Type Zirconia
Custom options are available.

Description

  • 1.58 Sleeves are available as solid or split alignment sleeves with 1.58mm ID
  • Available in zirconia or alumina ceramic material
  • High dimensional accuracy, tight tolerances and pull-out force requirements
  • Offers high strength, performance and durability
  • Custom ID, OD, Length dimensions and tolerances available upon request
  • Custom features available upon request
