Sapphire or Ruby Bar Hole Single Cup – MT5506

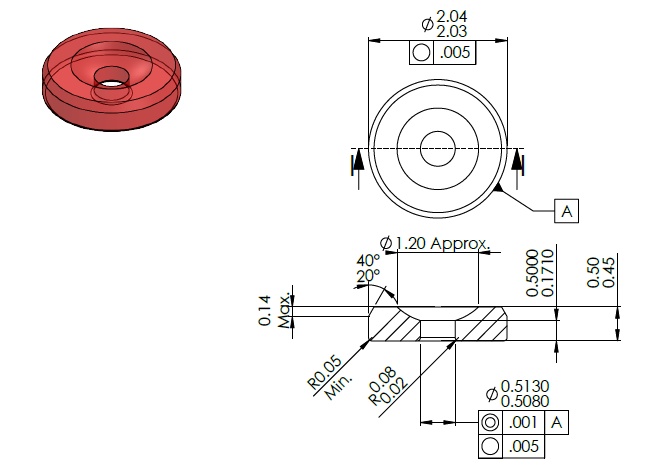

Renderings
Specifications
Model | MT5506 |
Inside Diameter | 0.5080 - 0.5130 |
Outside Diameter | 2.03 - 2.04 |
Length | 0.45 - 0.50 |
Type | Sapphire or Ruby |
Custom options are available. |
Description
A bar hole single cup jewel is flat on one side, a hole through the center and a cup surrounding the hole opposite from the flat side.
