Sapphire Cup Jewel – MT3500

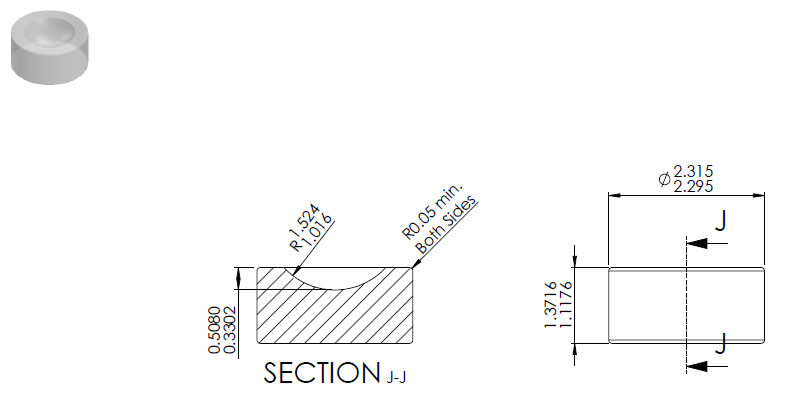

Renderings
Specifications
Model | MT3500 |
Outside Diameter | 2.295 - 2.315 |
Length | 1.1176 - 1.3716 |
Type | Sapphire |
Description
Cup jewels are flat on one side, with a half spherical cup on the opposite from the flat side and frequently used as a ball bearing or with a pivot. The cup is frequently used with a semi-spherical pivot or in a design that fits a ball bearing between two cups.
