Sapphire Vee Jewel – MT4005

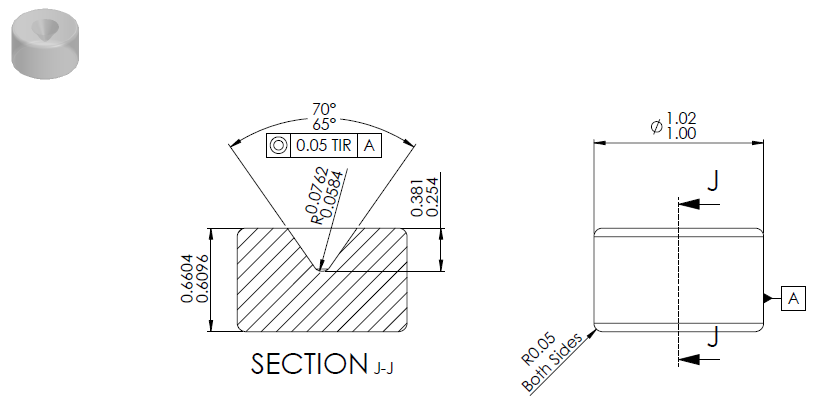

Renderings
Specifications
Model | MT4005 |
Outside Diameter | 1.00 - 1.02 |
Length | 0.6096 - 0.6604 |
Type | Sapphire |
Custom options are available. |
Description
A vee jewel is flat on one side with a vee opposite from the flat side. The vee provides minimum friction when paired with conical, small radiused pivots that permit slight lateral movement.
