Sapphire Vee Jewel – MT4038

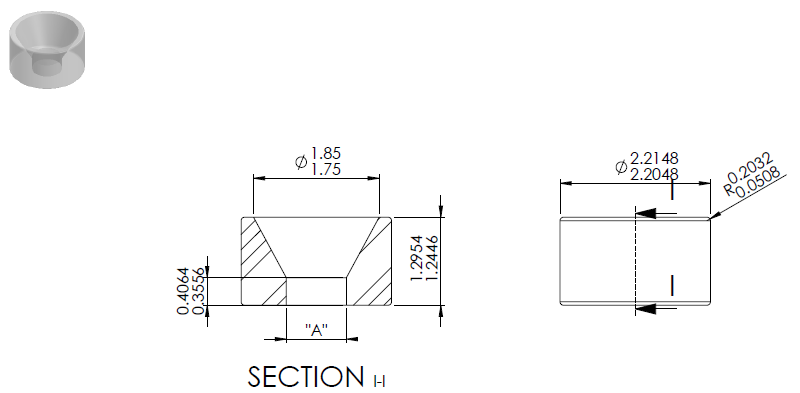

Renderings
Specifications
Model | MT4038 |
Outside Diameter | 2.2048 - 2.2148 |
Length | 1.2446 - 1.2954 |
Type | Sapphire |
Custom options are available. |
Description
A vee jewel is flat on one side with a vee opposite from the flat side. The vee provides minimum friction when paired with conical, small radiused pivots that permit slight lateral movement.
