Sapphire Vee Jewel – MT4042

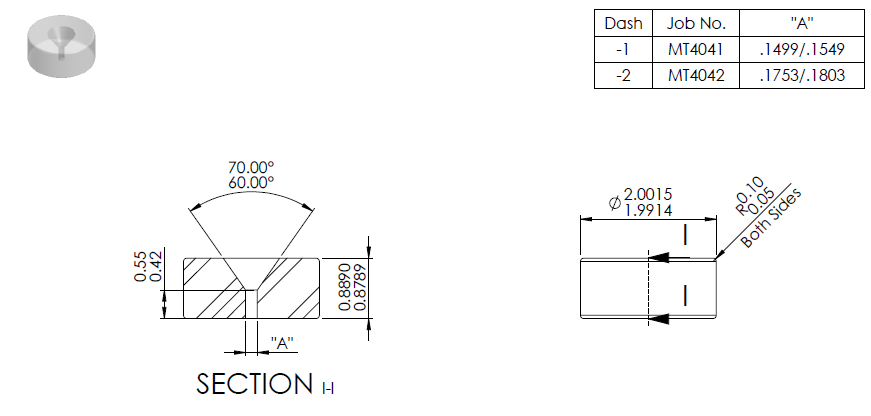

Renderings
Specifications
Model | MT4042 |
Outside Diameter | 0.8789 - 0.8890 |
Length | 1.9914 - 2.0015 |
Type | Sapphire |
Custom options are available. |
Description
A vee jewel is flat on one side with a vee opposite from the flat side. The vee provides minimum friction when paired with conical, small radiused pivots that permit slight lateral movement.
