Sapphire Vee Jewel – MT4056

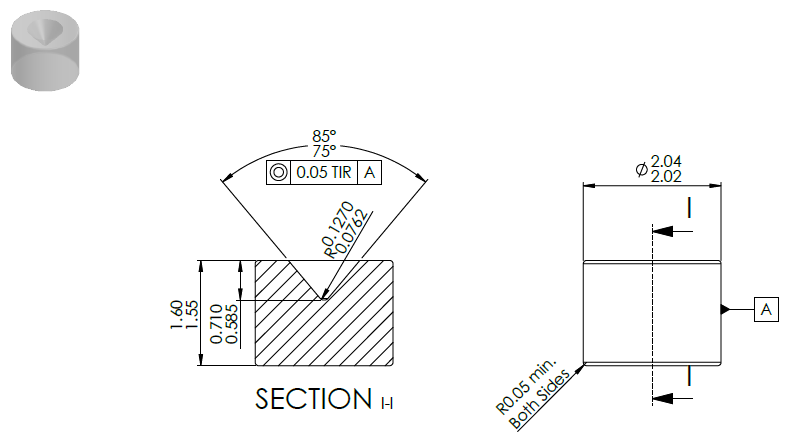

Renderings
Specifications
Model | MT4056 |
Outside Diameter | 2.02 - 2.04 |
Length | 1.55 - 1.60 |
Type | Sapphire |
Custom options are available. |
Description
A vee jewel is flat on one side with a vee opposite from the flat side. The vee provides minimum friction when paired with conical, small radiused pivots that permit slight lateral movement.
