2.00mm ID Sleeve – MT2516

Renderings

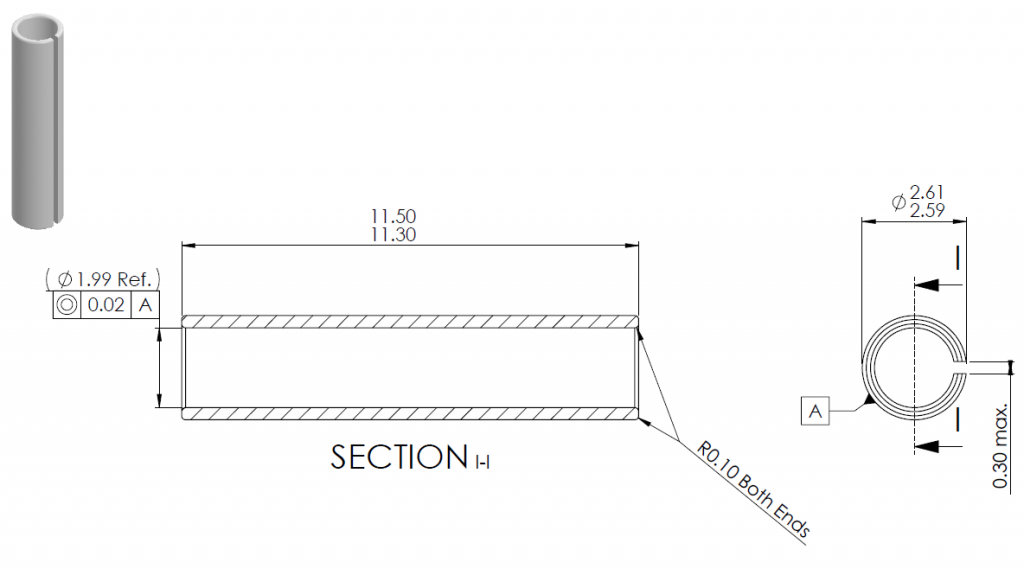

View LargerDownload Technical Drawing

Specifications

Model MT2516
Inside Diameter 1.99
Outside Diameter 2.59 - 2.61
Length 11.30 - 11.50
Type Zirconia
Custom options are available.

Description

  • 2.00 Sleeves are available as solid or split alignment sleeves with 2.00mm ID
  • Available in zirconia or alumina ceramic material
  • High dimensional accuracy, tight tolerances and pull-out force requirements
  • Offers high strength, performance and durability
  • Custom ID, OD, Length dimensions and tolerances available upon request
  • Custom features available upon request
